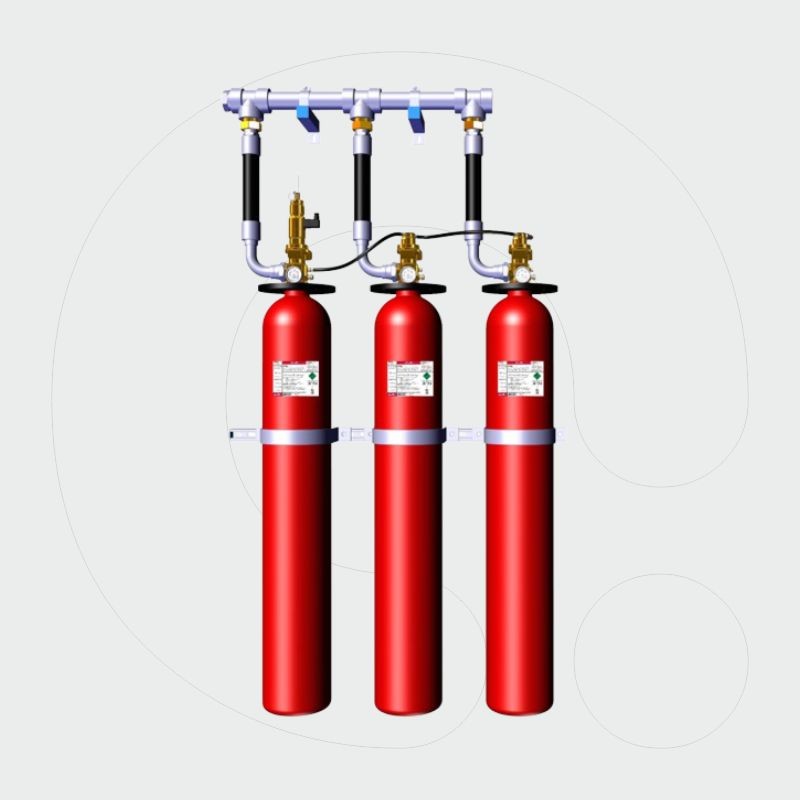

CO₂ Fire Suppression System

The CO₂ fire suppression system uses carbon dioxide as the extinguishing agent. CO₂ is a colourless and odourless gas, non-corrosive, non-conductive and leaves no residue after discharge. For this reason, it is suitable for protecting areas where water, foam or dry powder could cause significant damage to equipment or sensitive materials.

The system can be used in areas containing electrical and electronic equipment, electric substations, flammable liquid storage areas, kilns, ovens and spaces where valuable materials such as artworks, paintings or manuscripts are stored. After discharge, CO₂ evaporates quickly and leaves no traces on the protected surfaces.

Safety Notice:

The use of CO₂ systems must be carefully managed in areas where people or animals may be present, due to the asphyxiation hazard caused by oxygen displacement. Installation and use must follow the technical design, safety procedures and applicable fire protection requirements.

System Description:

Fixed CO₂ systems can be activated automatically or manually. Activation may be mechanical, pneumatic, electronic or a combination of these methods, depending on the system configuration and the conditions of the protected area.

Carbon dioxide is stored in high-pressure steel cylinders under normal temperature conditions. The pressure varies according to temperature and is approximately 59 bar at 21 °C. Multiple-cylinder batteries can be used for specific protected areas, according to the requirements of the fire protection design.

Main Components:

• High-pressure seamless steel cylinders with various capacities
• Cylinders electrostatically painted in red, with grey neck
• Pneumatically and manually activated valve system
• Option for electrically activated valve, depending on user requirements
• 3 L steel pilot cylinder containing nitrogen, used for batteries with more than two cylinders
• Galvanized high-pressure manifold/collector, tested at 300 bar
• Non-return valves for correct manifold installation
• Cylinder brackets and wall brackets
• High-pressure flexible hoses for connecting cylinders and manifold
• Various nozzle types, depending on the fire safety study requirements

Key Features:

• Automatic or manual CO₂ fire suppression system
• Suitable for technical areas and electrical/electronic equipment
• Clean, non-conductive and non-corrosive extinguishing agent
• No residue after discharge
• Capable of extinguishing in vertical and horizontal directions
• Fast diffusion into hidden or hard-to-reach areas
• Configurable with one or multiple cylinders, depending on the protected area

Technical Data:

• System type: CO₂ fire suppression system
• Extinguishing agent: Carbon dioxide CO₂
• Activation: Automatic or manual
• Activation method: Mechanical, pneumatic, electronic or combined
• Agent storage: High-pressure steel cylinders
• Pressure at 21 °C: Approximately 59 bar
• Pilot cylinder: 3 L steel cylinder with nitrogen
• Manifold/collector: Galvanized, high-pressure, tested at 300 bar
• Manifold diameter: From 1 1/4″ to 3″
• Manifold inlet/outlet: From 3/4″ to 3″, depending on configuration
• Non-return valves: 3/4″ – 3/4″

Certificates and Compliance:

• Cylinders according to ISO 9809-1
• Cylinders according to EN 1964-1
• π 99/36/EC
• CE cylinder according to 97/23/EC, TUV, CE 0036
• Manifold/collector tested at 300 bar
• Mirtec SA valve, BV, CE 0062
