Aboveground hydrant DN80 - Unbreakable
Aboveground hydrant - unbreakable, surface corrosion protection provided by an external and internal epoxy coating, with a minimum thickness of 250 μm, compliant with EN 14901:2014, RAL 3000.
SKU:
1012519
Aboveground hydrant - unbreakable
Features:
- Suitable for vertical installation in water or fire systems.
- Automatic discharge mechanism after use.
- Surface corrosion protection provided by an external and internal epoxy coating, with a minimum thickness of 250 μm, compliant with EN 14901:2014, RAL 3000.
- Operating pressure: PN16. Connection flange designed according to EN 1092-2.
- Aluminum couplings included.

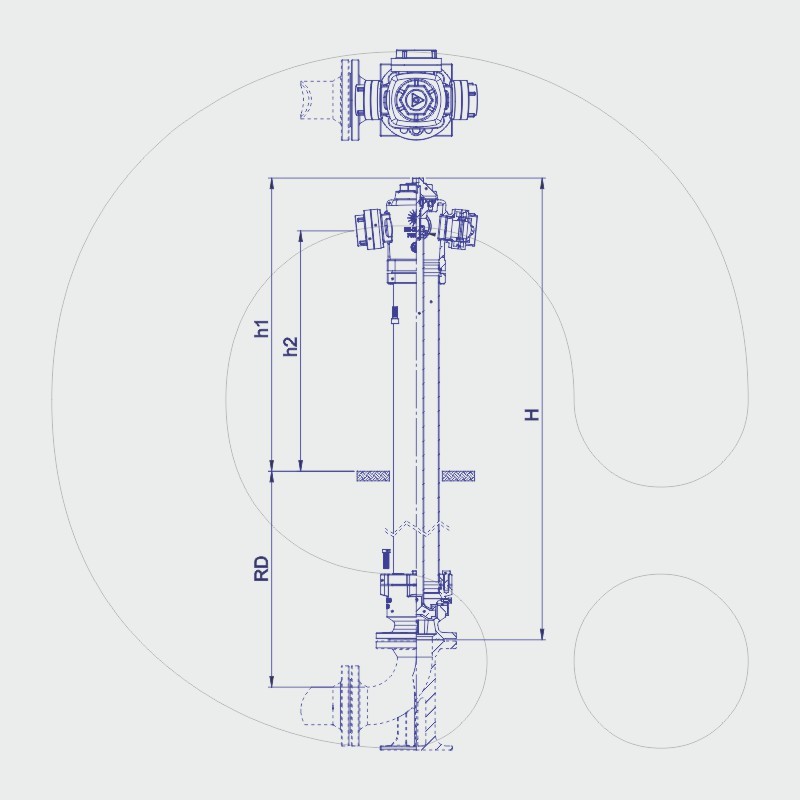

| DN | Coupling Outlet | RD | H [mm] | h1 [mm] | h2 [mm] | Weight [kg] | Item No. |
| 80 | B/2C | 750 | 1480 | 845 | 715 | 35 | 1014055 |
| 80 | B/2C | 1000 | 1730 | 845 | 715 | 37 | 1014056 |
| 80 | B/2C | 1250 | 1980 | 845 | 715 | 39 | 1014057 |
| 80 | B/2C | 1500 | 2230 | 845 | 715 | 41 | 1014058 |
