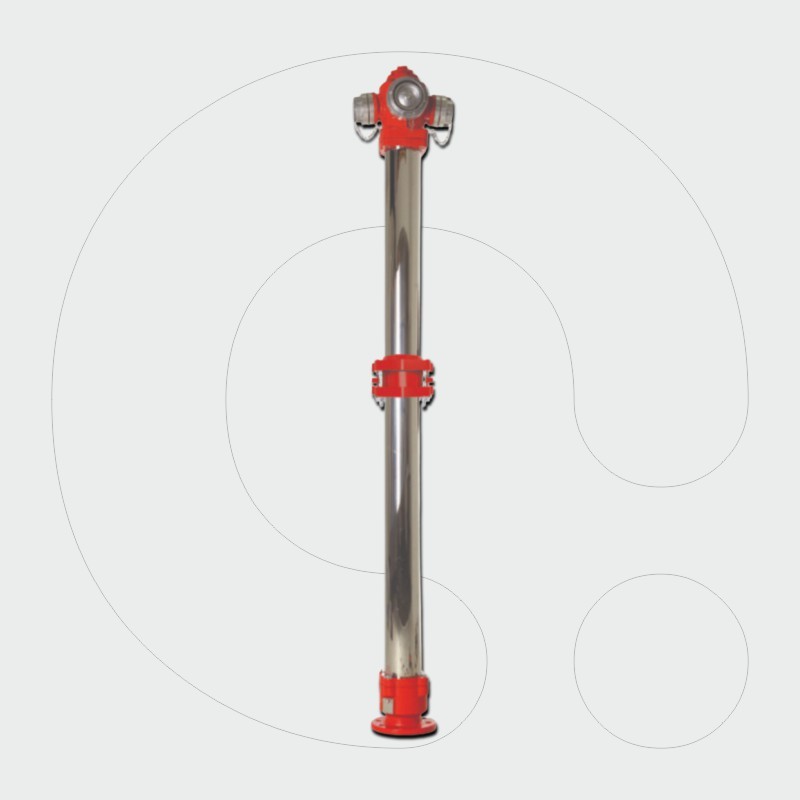

Aboveground hydrant - breakable, inox
Aboveground breakable hydrant, with corrosion protection provided by internal and external epoxy coating, minimum thickness 250 μm, compliant with EN 14901:2014.
SKU:
2014055
You may also like
Aboveground hydrant - breakable
Features:
- Suitable for vertical installation in water or fire systems.
- Automatic discharge mechanism after use.
- Surface corrosion protection provided by an external and internal epoxy coating, with a minimum thickness of 250 μm, compliant with EN 14901:2014.
- Operating pressure: PN16. Connection flange designed according to EN 1092-2.
- Aluminum couplings included.

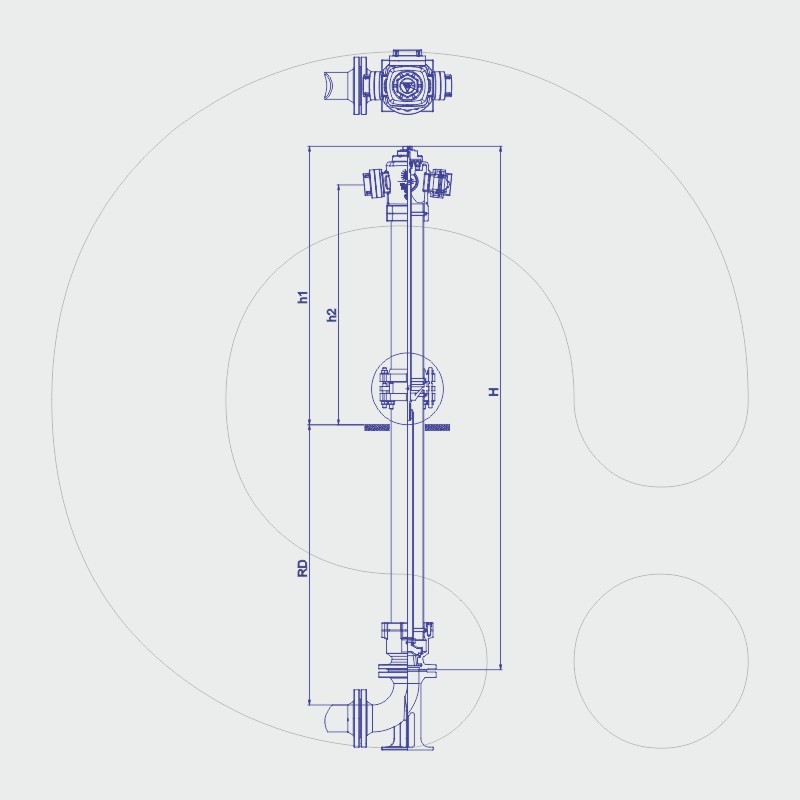

| DN | Coupling Outlet | RD | H [mm] | h1 [mm] | h2 [mm] | Weight [kg] | Item No. |
| 80 | B/2C | 750 | 1570 | 945 | 815 | 44 | 2014055 |
| 80 | B/2C | 1000 | 1820 | 945 | 815 | 46 | 2014056 |
| 80 | B/2C | 1250 | 2070 | 945 | 815 | 48 | 2014057 |
| 80 | B/2C | 1500 | 2320 | 945 | 815 | 50 | 2014058 |
