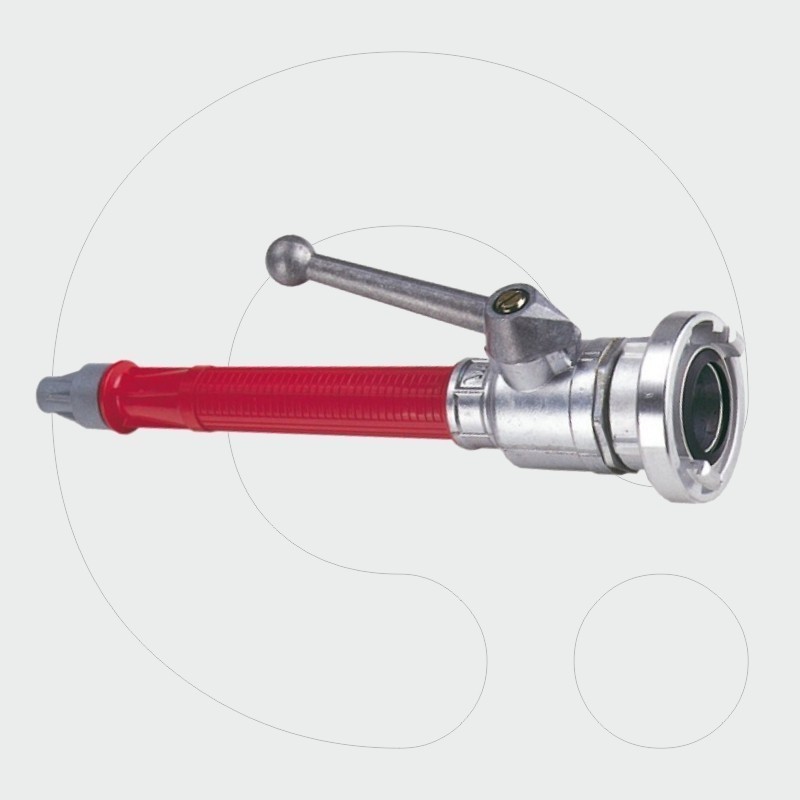

Trap-valve branch pipes with plastic tube
Trap-valve branch pipes with plastic tube
| Size | Solid coupling | Nozzle dimens. Ød [mm] Length p.I I Length p.II |
Length L [mm] |
Height H [mm] |
Weight [kg] |
Standardi | Item No. |
|
| Ø25 | Ø25=D | 6 | 4 | 290 | 100 | 0.5 | DIN14365 | 1012576 |
| Ø52 | Ø52=C | 9 | 16 | 440 | 135 | 1.2 | DIN14365 | 1012527 |
closed open-jet open-shower
These branches have a closing element - a trap-valve, i.e. ball with a built-in turbolator. There are three positions for opening and closing the element, as can be seen in the pictures above.
Materials:
- aluminium alloy – kneading quality
- aluminium alloy – casting quality
- washers – petrol-product resistant rubber
- tube and length – POLYAMIDE plastic substance
