*with the deflector

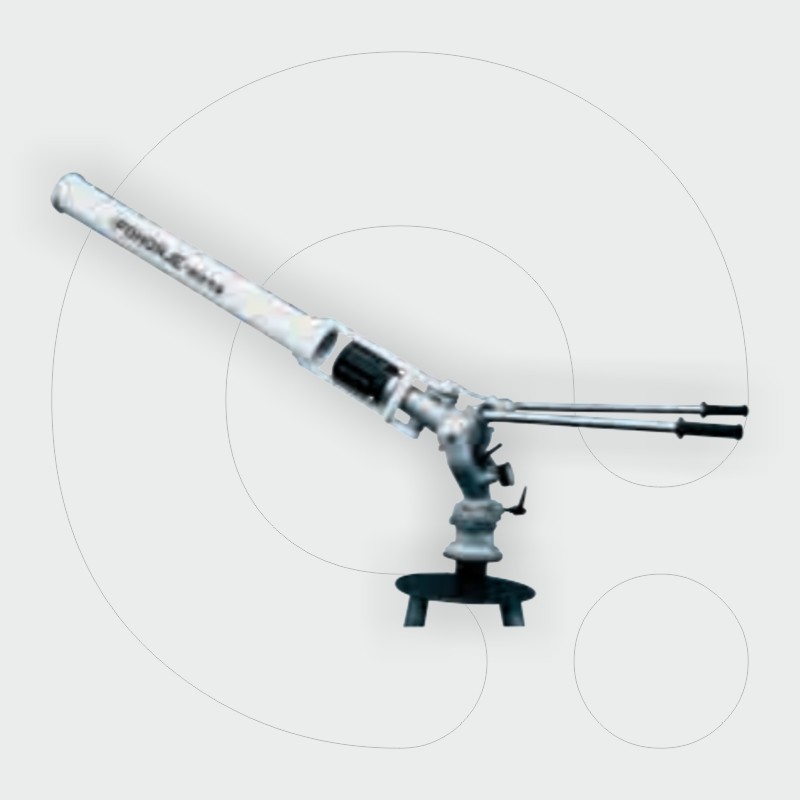

The GT 3200 fire monitor is designed for extinguishing category A and B fires, and in exceptional cases category C fires as well, with water or heavyfoam. The monitor can be installed onto a fire-fighting vehicle equipped with built-in pumps, or mounted onto the vehicle by way of a detachable coupling for quick connection and disconnection.

Another possibility is to mount it onto a monitor trailer equipped with either an A or B drawbar coupling and other elements suitable for quick handling. The third and fourth possibilities are to mount it onto a portable stabilizer with the ∅75 (B) coupling, or onto a stable water supply.

The pricipal parts of the GT 3200 fire monitor are: - the revolving housing which enables unhindered 360º horizontal and -50º to +80º vertical movement of the pipe, thereby allowing it to cover a wide area during intervention; the regulation head, which makes it possible to regulate flow between a range of 0 to 3200 l/min and to fight fire with water only (jet or shower).

The head is fixed by means of a handle at an angle to the jet of water; two control handles by means of which the water jet or foam jet can be directed as desired; the built-in manometer with a scale ranging from 0 to 2.5 MPa. The range of the fire monitor depends on the pressure and flow setting, and on whether the agent used is water or heavy foam.

Materials:

• aluminium alloy – kneading quality
• aluminium alloy – casting quality
• washers – rubber
